FC-007
KLAN
| Quantity: | |
|---|---|

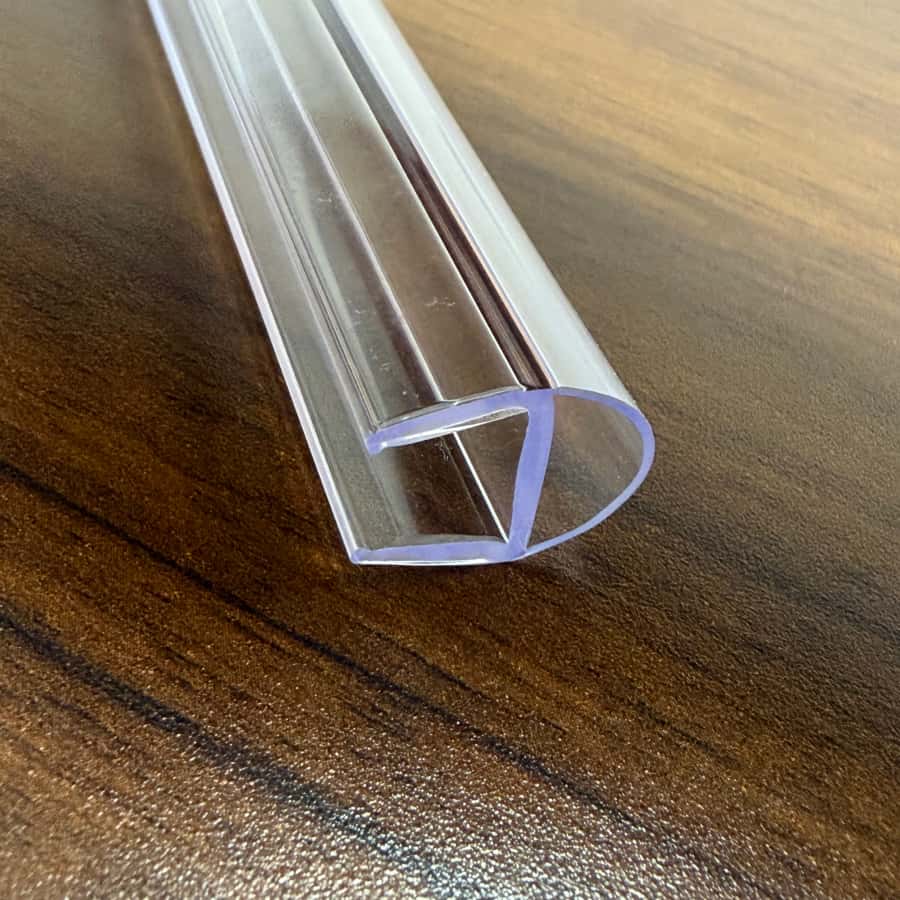

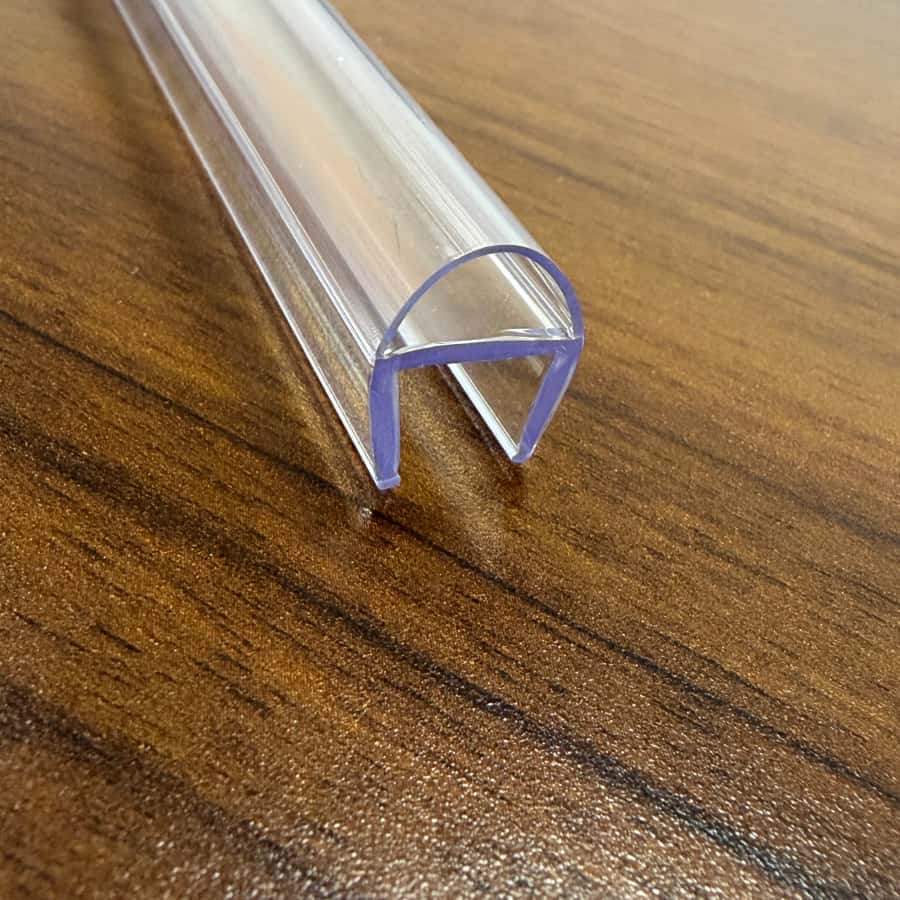

The FC-007 bubble shower seal is designed to seal vertical gaps on frameless shower screens, offering reliable water containment for 6 to 12mm thick flat tempered glass. Made from solid rigid PVC, this profile maintains consistent shape and structural stability in humid bathroom environments, resisting deformation after long-term use.
Solid Rigid PVC Construction: Sturdy body retains profile shape, less prone to sagging in damp bathroom conditions
Push-on Snap Fit: Slips directly onto glass edge, no adhesive, screws or drilling required
Integrated Bubble Profile: Creates effective physical barrier to stop water splashes through vertical seams
Easily Cut On-Site: Trim to required panel height with common cutting tools during installation
Crystal Clear Appearance: Matches modern frameless shower design, low visual impact
Bathroom Moisture Resistance: Stable under continuous humidity and regular cleaning
Secure Glass Clamping: Firm grip on glass edge, reduces risk of loose seal movement
Effectively blocks water splashes through vertical gaps of shower enclosures
Ideal replacement for old, brittle or dislodged shower seals
Maintains stable shape, won’t soften and sag in hot, humid shower spaces
Simple DIY fitting, ready for use immediately after installation
Easy to remove for replacement or cleaning maintenance
Versatile fit covering multiple common glass thicknesses from 6mm up to 12mm

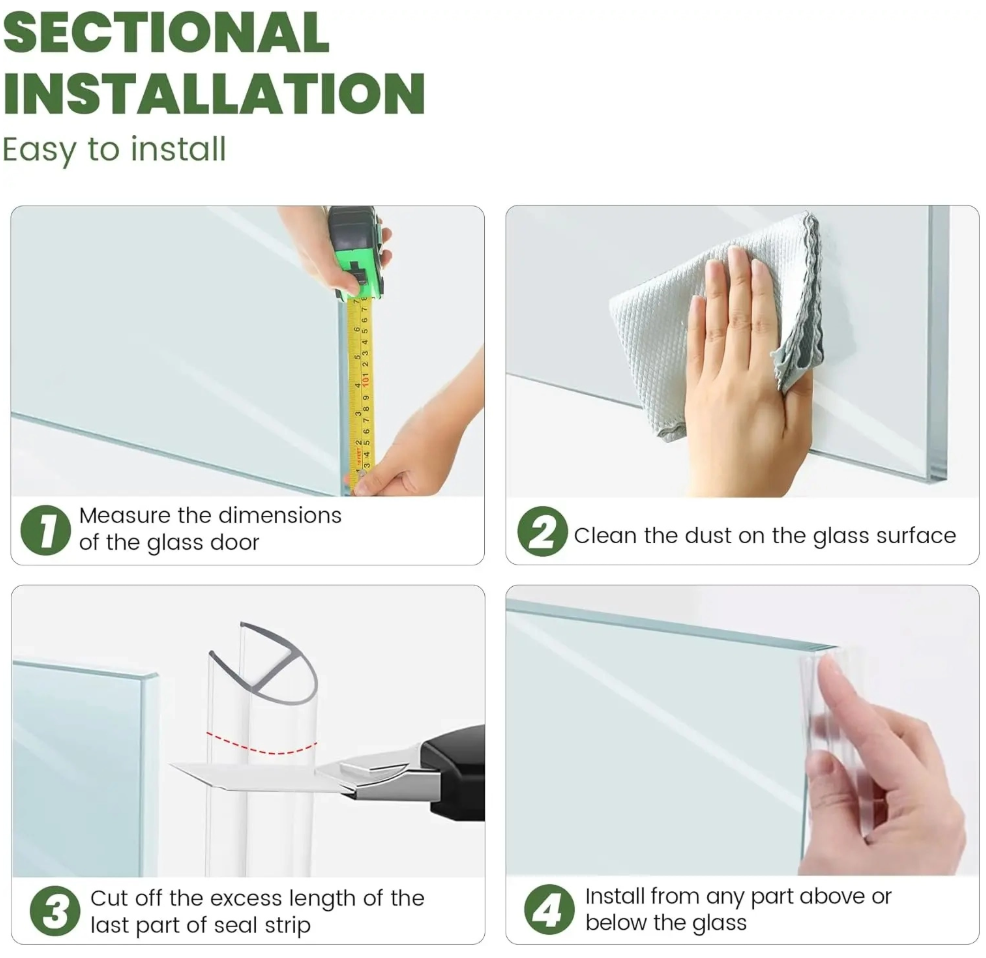

Start installation from the bottom end of the glass panel, avoid starting from the middle.
Align the U-channel opening of the seal with the glass edge.
Apply steady even pressure to push the channel along the full glass height until fully seated.
Cut off excess length at the top using fine-tooth saw or heavy-duty utility knife.
Check the seal is fully clipped on; it should not slide when lightly pulled by hand.
| Parameter | Specification |
|---|---|
| Model No | FC-007 |
| Accepted Glass Thickness | 6mm, 8mm, 10mm, 12mm |
| Material | Rigid PVC |
| Installation Method | Push-fit, cut-to-size on-site |
| Primary Orientation | Vertical mounting |
| Available Stock Length | 950mm / 2000mm |
| Colour | Crystal Clear |
| Unit Pack | Single piece |
| Operating Environment | Indoor humid bathroom |
| Warranty | 10‑month manufacturer coverage |
A1: It fits flat tempered glass of 6mm,8mm,10mm and 12mm. If your glass thickness is outside this range, please check our other seal profiles.
