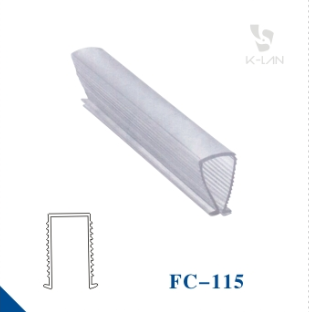

FC-115
K&LAN
| Quantity: | |
|---|---|
Platinum-cured LSR (Liquid Silicone Rubber) profiles with nano-porous surface (Ra 0.05-0.1μm) inhibiting biofilm formation. Features triple redundant sealing lips and embedded 316L stainless steel helix reinforcement. The "ClearView" optical grade variant achieves 92% light transmission (ASTM D1003). RFID tags (ISO 15693) molded into ends enable autoclave cycle tracking.
1. Sterilization compatibility: 500+ cycles @ 134°C steam/EtO/γ-ray
2. Particle emission: Class ISO 2 (≤0.3 particles/m³ @ 0.1μm)
3. Tensile strength: 14MPa (ISO 37), elongation 850%
4. FDA compliance: 21 CFR 177.2600 + USP Class VI
5. Electrical options: Conductive (10²Ω·cm) to insulative (10¹⁵Ω·cm)
Reduces pharmaceutical contamination risks by 99.99% versus EPDM seals. The "ZeroGap" interlocking system maintains ≤0.01mm tolerance across 10m spans. Certified for ISO 14644-1 Class 3 cleanrooms and cGMP manufacturing. Exceeds 3-A Sanitary Standard 18-03 for dairy processing.
1) Biotech: Isolator glove ports, freeze-dryer door seals
2) Pharma: Vial capping machine gaskets, lyophilization chambers
3) Hospitals: MRI RF shielding, surgical robot cable pass-throughs
Q: Extractables testing data?
A: <0.01% total (USP <1663>), non-cytotoxic (ISO 10993-5).
Q: Shelf life?
A: 10 years in nitrogen-flushed foil packs (25°C/60%RH).
Q: Custom shapes?
A: Prototype tooling available for profiles ≤25mm height (lead time 18 days).
