FC-006E
K&LAN
| Quantity: | |
|---|---|
| ABOUT PAYMENT: | ||||
| 1. TT, 30% deposit in advance, 70% balance before shippment（mostly used). | ||||
| 3.100% Western Union in advance. (for sample freight cost, small order,express or air shippment,small amount) | ||||
| 2. L/C at sight.(large order,high bank charge) | ||||
| 4. Cash directly |
| About Delivery | ||||
| 1.Express DHL,Fedex, UPS,TNT etc. (from door to door,fastest,very expensive, sample, urgent or small order are suggested) | ||||
| 2.By air,(fast,also expensive) | ||||
| 3.By sea(large order,long time,cheapest) |
| About Our Service | |
| 1.OEM/ODM is available | |
| *Print your logo on package if you need | |
| *Customized design and material | |
| *Customized packing for your order | |
| 2.Samples could be prepared for you on time | |
| 3.Compensate for the product if some quality problems caused by us | |
| 4.If you come to our factory, pls informe us advance,we will pick you up. |

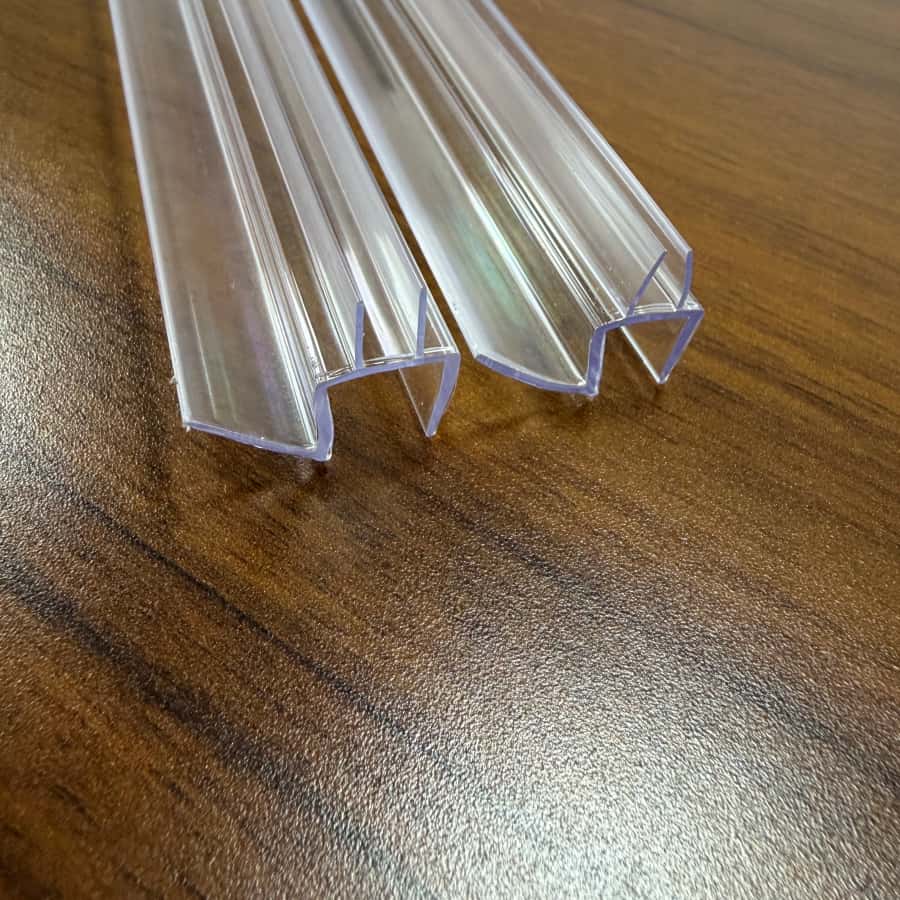

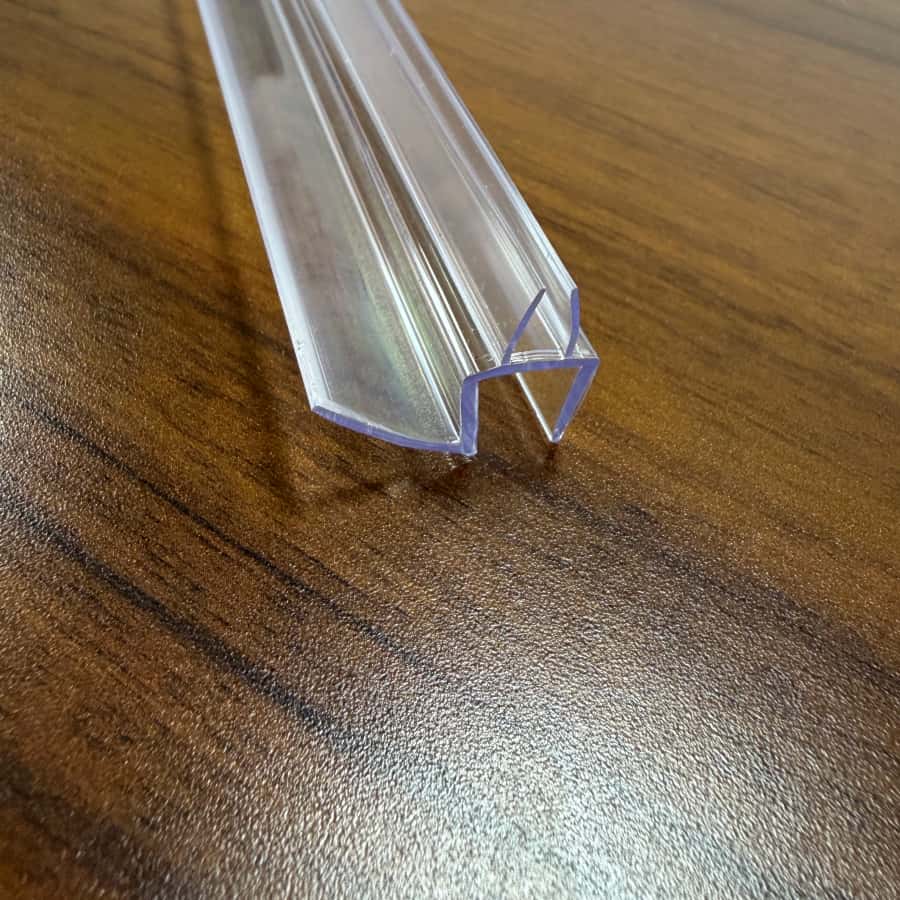

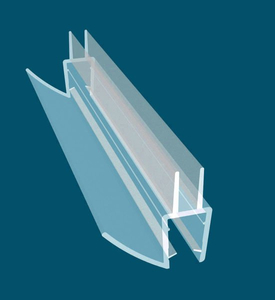

Our sweep seal FC-006E is crafted from premium transparent rigid PVC, built to endure the damp, steamy bathroom environment without rapid hardening or cracking. This profile is designed for installation along the bottom edge of shower glass panels, forming an effective barrier that contains shower water inside the tray and prevents leaks onto the bathroom floor.
Clear rigid PVC construction, resistant to bathroom moisture and daily cleaning chemicals
U-shaped push-fit channel for simple installation, no glue or drilling required
Integrated curved water deflector flap to contain escaping shower water
Compatible with 6mm,8mm,10mm,12mm flat tempered shower glass
Fully cuttable to custom lengths for different door heights
Transparent appearance to match frameless shower aesthetic
Reduces water leakage and protects bathroom flooring from water damage
Suitable for retrofit replacement and brand-new shower builds
| Item | Details |
|---|---|
| Product Name | PVC Shower Door Bottom Sweep Seal |
| Material | Rigid Clear PVC |
| Glass Thickness | 6mm / 8mm /10mm /12mm |
| Colour | Crystal Clear |
| Standard Length | 950mm / 2000mm |
| Installation | Push-fit clip on, cut-to-size |
| Application | Bottom edge of flat frameless shower glass |
| Packing | Single piece |
Clean and fully dry the bottom edge of your shower glass panel before fitting.
Align the U channel opening of the sweep seal with the glass bottom edge.
Apply even pressure to push the channel fully onto the glass until securely clipped.
Mark and trim excess seal length using a utility knife or fine-tooth saw.
Double-check the deflector flap sits lightly on the shower tray surface without heavy friction.
