A compromised shower enclosure goes beyond merely causing annoying puddles on your bathroom floor. It acts as a silent catalyst for severe structural damage inside your home. When water constantly escapes the enclosure, it accelerates underlying water damage. It also encourages rampant mold proliferation and causes stubborn hard-water etching on adjacent floor tiles. We must therefore view the prompt replacement of worn stripping not as a minor cosmetic fix. Rather, consider it a critical preventative maintenance protocol. Waiting too long often necessitates costly subfloor repairs. This comprehensive guide provides an evidence-based, step-by-step approach to fixing the issue right the first time. You will learn how to eliminate sizing guesswork and minimize physical installation friction. Follow these steps to secure reliable, long-term protection for your bathroom.
Material Dictates Lifespan: Co-extruded seals (combining rigid channels with flexible fins) offer the highest structural integrity and leak prevention.
Precision in Measurement: Standard glass thicknesses (1/4”, 3/8”, 1/2” or 6-12mm) dictate compatibility; a mismatched seal will either fail to grip or tear during installation.
Directional Accuracy: The drip edge/lip must fundamentally always face the interior of the shower to route water back into the basin.
Friction Mitigation: Never use boiling water to soften stubborn seals. Use targeted, non-destructive lubrication (like clear shampoo or petroleum jelly on a Q-tip) for tight gaps.
Systematic Sealing: A mechanical sweep handles dynamic movement, while 100% silicone sealant handles static joints. Never apply silicone inside a sliding door track.
Before pulling out your tools, you must accurately evaluate your current hardware setup. Selecting the correct shower door accessory depends entirely on matching the product features to your specific leakage outcomes. Establishing clear evaluation dimensions helps you shortlist the best possible replacement part.
Different areas of your glass enclosure experience varying types of water pressure and kinetic movement. You need specific profiles for each zone:
Bottom Sweeps: These strips address the primary leak zone at the base of the glass. They feature an angled drip rail designed to catch downward water flow and deflect it back into the tray.
Jamb and Side Seals: You install these vertically along the glass edges. They cushion the impact of the door closing and prevent lateral spray from escaping through the side hinges.
Magnetic Seals: Manufacturers design these specifically for frameless pivot doors. They utilize embedded magnets to create a watertight, seamless closure upon impact.
Not all plastic strips endure bathroom environments equally. Material choice directly impacts both aesthetic longevity and functional lifespan. You must weigh the pros and cons carefully.
Material Type | Key Characteristics | Expected Lifecycle | Best Application |
|---|---|---|---|
Standard PVC | Cost-effective but prone to UV yellowing. Hardens under frequent temperature fluctuations. | 1 to 2 years | Temporary fixes or budget-conscious repairs. |
Silicone | Highly flexible and resistant to extreme temperatures. Rarely yellows over time. | 3 to 5 years | Irregular gaps or custom glass shapes requiring adhesive. |
Co-Extruded | Fuses rigid channels to soft flexible fins. Offers supreme mechanical grip and silent operation. | 4 to 6+ years | Premium frameless systems demanding high structural integrity. |
We strongly advise you to shortlist manufacturers utilizing co-extrusion technology. This advanced manufacturing process fuses two different material grades simultaneously. It creates a rigid polycarbonate or hard PVC spine for a secure mechanical grip. Simultaneously, it produces soft, flexible rubber fins for silent, frictionless water blockage. Look for premium models containing factory-integrated mold inhibitors. These chemical additives drastically extend the functional lifespan by resisting mildew buildup.
Proper preparation separates a professional-grade repair from a temporary, failing fix. You must establish optimal baseline conditions and take exact measurements before applying any new stripping to the glass edge.
You cannot simply guess the width of your glass panels. Using digital calipers or a highly precise tape measure is an absolute necessity. Standard residential enclosures generally use 1/4" (6mm) glass. Conversely, heavy-duty frameless systems typically rely on 3/8" (10mm) or 1/2" (12mm) glass panes. If you buy an overly wide channel, the strip will sag and fall off. If you buy a channel too narrow, it will tear during application.
Removing the old, discolored strip is only step one. The underlying glass edge harbors invisible layers of debris. You must aggressively scrape the bottom edge using a sharp safety razor. Follow this mechanical scraping by wiping the glass thoroughly. Use high-concentration isopropyl alcohol or a premium glass cleaner.
Risk Factor: You must treat residual scale, soap scum, or old adhesive as serious threats. Any remaining residue will compromise the mechanical grip of your new part. This contamination acts as a lubricant, eventually causing the strip to sag and catch on the floor.
Measure the total width of your glass door panel carefully. Transfer this exact measurement to your newly purchased strip using a fine-tip marker. Do not use standard household scissors to trim the piece. Scissors apply uneven crushing force. Instead, use sharp wire cutters, aviation tin snips, or a fine-tooth hacksaw. These specialized tools slice cleanly through the rigid spine. They prevent jagged edges and stop micro-cracks from forming.
Execution requires systematic precision. By following this comprehensive installation guide, you will deploy a clear, actionable, and hassle-free framework. Avoid rushing these phases to ensure maximum efficiency.

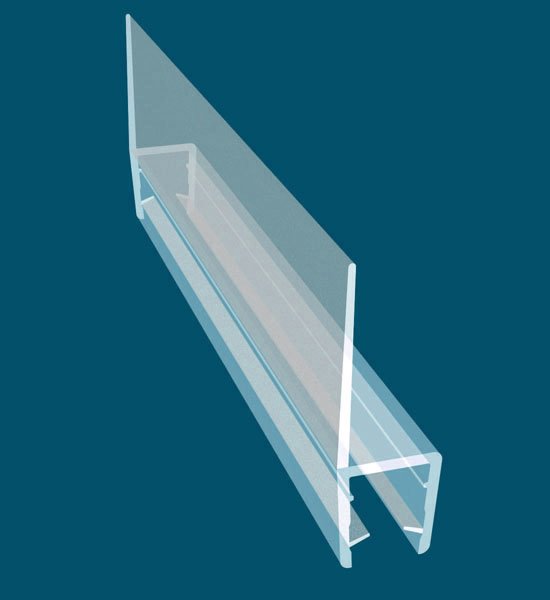

Inspect the profile of your new sweep carefully. Identify the drip lip, which looks like an angled fin extending outward from the main channel. Assert this absolute rule before proceeding: this lip must fundamentally face the inside of the shower tray. If you install it backward, the fin will funnel water directly onto your bathroom floor instead of deflecting it inward.
For standard bottom sweeps, utilize the mechanical snap-on technique. This method guarantees a secure fit without messy adhesives.
Open the glass panel outward to gain full access to the bottom edge.
Start exclusively at the hinge side of the door panel.
Push the rigid channel firmly upward onto the glass edge.
Work sequentially toward the handle side using your thumbs.
Apply even, continuous upward pressure until you hear or feel the channel "click" securely into place.
Vertical side sweeps require specific modifications. You must notch them precisely to accommodate metal hardware. If you fail to notch the plastic, the door will not close fully.
Hold the full-length strip against the glass edge next to the metal hinges. Mark the exact top and bottom boundaries of each hinge using a marker. Take your wire cutters and carefully snip out the rigid acrylic backing between your marks. Leave only the soft, flexible fin intact. This allows the soft fin to bypass the bulky hinge smoothly while the rigid spine grips the glass above and below it.
Do not pack away your tools until you verify the waterproofing. Run your handheld shower head directly at the newly sealed seam for at least one minute. Actuate the door inward and outward multiple times. Ensure smooth operation occurs without binding or harsh scraping against the floor tiles.
Even seasoned installers face high-friction deployment challenges. Understanding real-world troubleshooting separates amateur attempts from professional results. Securing your new Shower Door Seal safely sometimes requires advanced techniques.
Pushing a rigid channel into a tight tolerance often causes intense frustration. The strip might bind halfway down the glass or refuse to seat fully against the bottom edge.
The Dangerous Myth: Many amateur forums suggest boiling the plastic strip in hot water to soften it. You must avoid this practice completely. Boiling water warps the precision-engineered co-extruded spine. It permanently ruins the mechanical grip, guaranteeing the part will fall off within weeks.
The Professional Solution: Apply a micro-layer of lubrication directly inside the rigid channel. Dip a Q-tip into a trace amount of petroleum jelly or standard clear baby shampoo. Run the swab lightly along the inside gripping edges. This targeted lubrication breaks the physical friction immediately. It allows the channel to slide onto the glass effortlessly without chemically degrading the PVC material.
Sometimes you successfully install the sweep, but it catches heavily on the floor tiles. You might wrongly assume you bought an oversized profile. However, the true issue often involves heavy glass panels sagging at the hinge side over time. Gravity pulls frameless doors downward incrementally. Before trimming the plastic fin to make it fit, check your metal hinges. Re-torquing the hinge screws usually lifts the door back to true level, providing ample clearance for your new sweep.
A single plastic sweep cannot waterproof an entire bathroom alone. To achieve absolute leak prevention, you must understand the difference between dynamic and static waterproofing. Mastering this synergy establishes professional-grade authority over your bathroom maintenance.
Every component serves a strictly defined purpose within the broader moisture control system.
Shower Door Sweeps: Engineers design these strictly for moving parts. They attach to the door itself, allowing kinetic movement while actively blocking splashing water.
100% Silicone Sealant: Manufacturers formulate this thick paste for static intersections. You apply it where the metal frame meets the tiled wall or where the base track meets the floor pan. It handles zero movement.
Applying wet silicone requires discipline. Misapplying it causes more damage than it prevents. Follow these critical rules based on your specific door type:
Sliding Enclosures: When addressing sliding track systems, apply sealant strictly to the exterior perimeter. Never pump silicone inside the hollow track itself. Filling the interior track blocks the manufacturer's integrated weep holes. Trapped water will stagnate, and the heavy metal rollers will quickly bind in the cured rubber.
Framed Pivot Enclosures: Run a continuous bead of sealant along the vertical wall jambs. Purposefully avoid applying any paste near the active hinge mechanisms. Cured silicone creates intense friction against moving metal parts, eventually causing hinge failure.
Proper Tooling Techniques: Never leave a freshly applied bead of paste untouched. Always tool the wet bead immediately. Wear a nitrile glove, dip your index finger in mild soapy water, and drag it along the joint at a consistent 45-degree angle. This forces the paste deep into the crevice. It ensures a watertight, highly polished curing profile that resists mold accumulation.
Maximum efficiency in your bathroom relies entirely on combining the correct materials with precise, directional installation. Upgrading to a co-extruded, thickness-matched profile guarantees exceptional mechanical grip and lasting durability. Remember to leverage non-destructive lubrication techniques for stubborn installations instead of applying damaging heat. Inspect your newly integrated strips bi-annually to catch early signs of material hardening or minor mold ingress. Take action immediately by locating your digital calipers. Measure your glass thickness today as the critical next step before sourcing your premium replacement components.
A: Typically, you should replace them every 1 to 2 years. The exact timeline depends heavily on local water hardness, daily usage frequency, and material degradation caused by temperature shifts.
A: No. Mechanical snap-on fits always perform best. Standard cyanoacrylate glues dry rigid and shatter under the kinetic impact of a closing door. If your custom glass demands adhesive, only use clear marine-grade silicone.
A: Water leaks usually point to three distinct errors. Check for backwards installation of the drip lip. Verify you purchased the correct glass thickness sizing. Finally, inspect the surrounding static wall joints, which may require fresh silicone sealant.
