A magnetic shower door seal fails when mechanical misalignment, incorrect magnetic polarity, channel slippage, glass panel sag, limescale buildup, or thermal hardening prevents opposing magnetic strips from seating flat to achieve full flux attraction.
Start by checking whether the magnets repel or miss each other
Replacing one side can stop the pair matching
A dropped door will not be pulled straight by a standard magnetic strip
If the New Strip Keeps Slipping
When the door closes but still leaks, check for limescale
An angled magnetic strip can jam the door if fitted the wrong way round
A hardened strip can still attract, but no longer sit flat
Look at how the seal is failing before choosing the fix

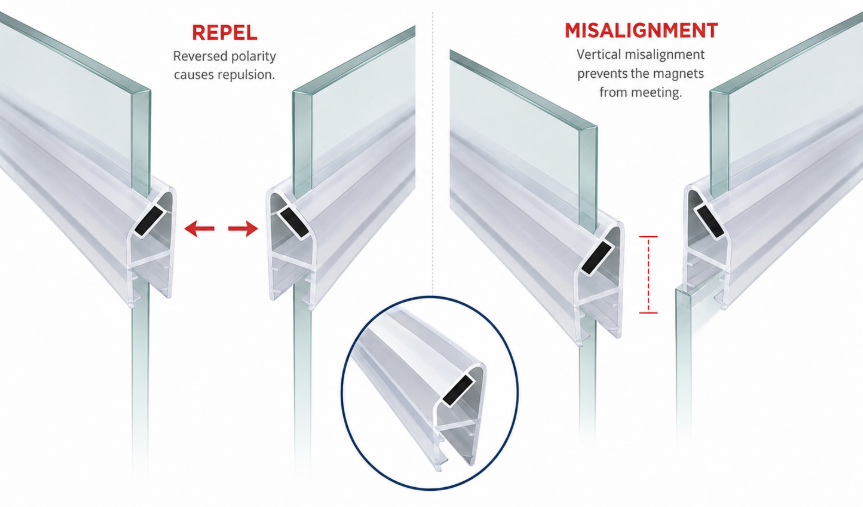

To diagnose a magnetic shower door seal that refuses to close, verify whether internal magnetic cores are repelling due to reversed polarity or missing each other from panel misalignment.
Flexible magnetic strips are produced by compounding ferrite powder into PVC or EVA matrices, magnetized in multi-pole configurations. When two profiles face each other, North poles must meet South poles. If a strip is inserted backward in its rigid mounting channel, identical poles face each other, causing immediate magnetic repulsion.
Additionally, if glass panel alignment strays over 2 millimeters along the vertical plane, the magnetic flux density drops significantly. The magnets miss each other physically, leaving an open air gap that permits water leakage under direct shower pressure. Over forty percent of site failure reports stem from simple polarity inversion or minor axial shifts.
Procurement teams analyzing site failures must check physical alignment across the entire door height. Installing a precision-engineered set like a heavy duty magnetic shower door seal strip ensures correct pole orientation and reliable zero-repulsion closure.
Replacing only one side of a magnetic shower door seal pair disrupts physical equilibrium, as differing profile dimensions, magnet widths, and lip geometries prevent proper interlocking.
A magnetic shower door seal is engineered as a matched system where complementary channels nest together. Replacing only the door strip while retaining an aged fixed-panel strip introduces dimension discrepancies. Even a 0.5 mm channel variance between extrusion dies prevents magnetic core faces from making flush contact.
Moreover, magnetic flux characteristics differ between production batches. A new high-coercivity strip paired with an aged strip creates uneven pull force, causing soft sealing lips to pucker and create water channels.
European hospitality management specifications consistently require dual-strip replacement protocols. Specifying a synchronized set, such as a co extruded magnetic glass door seal, guarantees matching Shore hardness and exact core alignment across 90-degree and 180-degree installations.
A standard magnetic shower door seal lacks the structural force to lift or align a sagged glass panel, operating strictly as a latch rather than a load-bearing element.
Frameless 8mm to 12mm glass doors exert significant weight on wall hinges. Over time, hinge fasteners loosen or gaskets creep, causing the door edge to drop and shifting the magnetic seal line out of square.
Commercial flexible magnetic seals generate 1.5 to 3.5 kg/m of pull force—insufficient to overcome the gravitational load of a 30kg glass door. Forcing a dropped door shut subjects the plastic profile to severe shear stress, causing lip tearing and structural failure.
Maintenance Principle for Structural Panel Alignment: Always adjust door hinges to correct panel sag before replacing the seal. Never rely on magnetic attraction to pull an out-of-plumb door into alignment, as continuous shear stress permanently damages the PVC channel.
A newly installed magnetic shower door seal slips off the glass when the U-channel width mismatches the glass thickness or when soap lubricants remain on the glass edge.
Frameless seals rely on friction clamping between rigid PVC legs and the glass edge. International manufacturing standards allow glass thickness variances up to ±0.2 mm. Installing an 8mm channel on a 6mm panel eliminates clamping pressure, causing the strip to slide down under gravity.
Furthermore, installers often use soapy water to slide tight profiles onto glass. Trapped surfactant liquids create a slick barrier, allowing kinetic impact from door closures to push the seal out of place over time.
To prevent profile slippage in commercial projects, match U-channel tolerances strictly to glass thickness and degrease glass edges with alcohol prior to installation. Selecting a clear rigid PVC magnetic door gasket with internal gripping ribs provides a secure mechanical fit without liquid adhesives.
When a magnetic shower door seal closes completely but still leaks, calcified limescale buildup along the profile face or flexible drip fins is breaking fluid contact.
In hard water areas, calcium carbonate and magnesium salts precipitate onto PVC lips and magnetic core housings. These mineral deposits form rough crusts, creating micro-gaps from 0.1 mm to 0.8 mm across the seal face even when magnets pull together.
Water enters these micro-gaps through capillary action and leaks onto the floor. Limescale also stiffens soft PVC fins, causing them to lose elastic memory and fail under spray pressure.
Facility managers should implement routine chemical descaling with citric acid cleaners to remove mineral crusts and restore the smooth elastic contact necessary for water containment.
Installing an angled magnetic shower door seal in reverse causes mechanical binding, as the profile legs wedge against the glass before magnets can make parallel contact.
Enclosure designs (90-degree corner or 180-degree inline) require specific profile angles. A 90-degree corner seal positions the magnetic track at 45 degrees to match its opposing profile cleanly.
If installed backward, extended soft plastic fins stick into the door swing path. The angled outer legs collide prematurely, acting as a wedge stop that jams the door before magnets reach their 3mm attraction threshold.
Working Principle of Angular Extrusions: Angled seals combine vector magnetic pull with lip flexure. Reverse installation flips the force vector, turning a closing guide into a stop block. Dry-fit profiles to check swing paths before seating channels fully.
An aged magnetic shower door seal may retain magnetic pull yet fail to seal because plasticizer loss hardens the PVC, preventing the warped profile from sitting flat.
Flexible PVC profiles rely on liquid plasticizers for elasticity. Heat, cleaning chemicals, and UV exposure cause plasticizer migration over time, rendering the PVC brittle and rigid.
Hardened profiles suffer permanent bowing and twisting. Although the internal magnet core attracts, the rigid outer shell bridges over glass surface variations, leaving wide gaps for water leakage.
Commercial buyers should specify UV-stabilized PVC co-extruded with Thermoplastic Elastomer (TPE) lips. TPE avoids plasticizer migration, retaining flexibility and flat surface contact throughout its service life.
Choosing the right fix for a non-functional magnetic shower door seal requires a systematic visual check to determine whether the issue is mechanical, physical, chemical, or structural.
Technicians should follow this diagnostic inspection checklist before ordering replacement parts:
Inspect Polarity and Attraction: Bring the door close to closing. If sections repel, remove the magnetic core insert and flip it 180 degrees.
Examine Structural Plumb and Glass Margin: Measure the gap width at the top, middle, and bottom using calipers. If variance exceeds 2 mm, adjust hinges before evaluating the seal.
Check Profile Flexibility and Surface Texture: Press the soft lip. If it feels hard or shows white crusts, descale with citric acid or replace the hardened strip.
Verify Channel Tightness: Pull down on the profile. If it moves easily, clean detergent residue off the glass with alcohol and install a profile with internal gripping barbs.
Match Angular Geometry: Verify if the layout requires a 90-degree or 180-degree profile, ensuring the miter angle aligns with the door swing path.
