The structural integrity and water containment of a frameless glass enclosure rely entirely on a component often treated as an afterthought: the polymer seal. Incorrectly specified seals lead to immediate water egress, accelerated hardware corrosion, mold proliferation in microscopic crevices, and mechanical binding that stresses tempered glass. Selecting the correct specification requires moving beyond generic replacements. You must evaluate gap tolerances, material science, and operational mechanics to specify the exact profile required for your specific enclosure system. Finding the perfect shower door seal dictates the long-term viability of the installation. We will examine the physics of glass movement, the exact measurements needed for a watertight fit, and the differences between rigid polycarbonate and co-extruded PVC. This ensures your next installation remains leak-free, hygienic, and structurally sound without putting undue stress on the hinges or the glass panels themselves.
Precision Matching: A seal must be matched to the exact glass thickness (typically 6mm to 12mm) and the specific gap geometry to prevent friction-induced door failure.
Material Longevity: High-grade polycarbonate and co-extruded PVC are mandatory for resisting UV degradation, chemical yellowing, and thermal stress in high-moisture environments.
Application-Specific Profiles: Operational mechanics dictate the profile—sweeps for thresholds, magnetic closures for alignment, and bulb seals for pivot hinges.
Supplier Verification: For commercial projects or proprietary hardware, partnering with a vetted glass door seal supplier ensures extrusion consistency and access to custom OEM profiles.
Glass enclosures act as dynamic structures. Despite the rigidity of tempered panels, heavy brass hinges settle over time, building foundations shift, and thermal expansion causes minute geometric variations in the opening. Relying on a universal fit approach compromises door operation and water containment. A rigid channel designed for a specific thickness will either fail to grip a thinner panel or require excessive force to seat on a thicker panel, risking edge fractures.
Industry standard glass thicknesses dictate the rigid channel width of the extrusion. You must measure the glass edge using digital calipers rather than relying on standard tape measures. Manufacturing tolerances in glass production often yield slight variations from nominal dimensions. A panel sold as 10mm might actually measure 9.8mm or 10.2mm. Once the exact thickness is confirmed, evaluate the gap between the glass edge and the adjacent surface. This measurement must be taken under fully loaded conditions, meaning the door should be mounted, leveled, and resting in its natural closed position.
Sizing errors carry immediate operational consequences. Seals that fit too tightly restrict door movement. This creates mechanical drag that transfers stress directly to the hinges and mounting hardware. Over time, this friction causes hinges to loosen, pull out of the wall anchors, or allows glass panels to slip out of alignment. Loose seals fail to maintain contact with the adjacent surfaces, allowing water to escape under pressure. Safety treatments like tempered edges or factory-applied hydrophobic glass coatings alter the surface friction. Hydrophobic coatings create a slicker surface, requiring a rigid channel with higher tension memory to prevent the extrusion from sliding down the vertical edge during daily operation.
Nominal Glass Thickness | Metric Equivalent | Typical Application | Required Channel Tolerance |
|---|---|---|---|
1/4 inch | 6mm | Framed or semi-frameless sliders | 5.8mm - 6.2mm |
5/16 inch | 8mm | Standard frameless pivot doors | 7.8mm - 8.2mm |
3/8 inch | 10mm | Heavy frameless enclosures | 9.8mm - 10.2mm |
1/2 inch | 12mm | Premium architectural fixed panels | 11.8mm - 12.2mm |
Effective water containment requires mapping the primary failure points within the enclosure geometry. The bottom threshold experiences the highest volume of standing and deflected water. Vertical hinge gaps remain vulnerable to direct spray from handheld showerheads. The strike edge must manage water deflection while accommodating the mechanical action of the door closing against a fixed panel or wall.
The baseline criteria for a successful installation is zero water escape during direct spray testing. You achieve this without impeding the door's swing or slide. The extrusion must deflect water back into the wet zone while maintaining a low-friction contact point with the adjacent surfaces. If the door requires excessive manual force to overcome seal friction during operation, the profile geometry or gap calculation is incorrect. Installers should perform a paper test: a standard sheet of paper should pull through the closed gap with slight resistance. If it tears, the fit is too tight; if it falls through, the gap is too wide.
The primary function of a bottom shower seal is to deflect water cascading down the glass panel back into the tray, while simultaneously managing friction against floor curbs or thresholds. These horizontal profiles endure the most mechanical wear, as they constantly sweep across tile, stone, or acrylic surfaces.
Specific profiles address different threshold geometries. Drip rails feature a rigid deflector angled inward at 45 to 60 degrees to catch heavy water runoff, channeling it away from the gap entirely. Single fin sweeps provide a minimalist barrier for tight clearances, while double fin configurations offer a redundant defense against pooling water. Angled deflectors combine a downward fin with an inward-facing lip, creating a comprehensive barrier against high-pressure spray.
Specifying these profiles requires balancing fin length against mechanical drag. Longer flexible fins provide superior water blockage by accommodating uneven floor slopes and grout lines. Excessive length creates severe drag, leading to premature wear, tearing of the flexible lip, and unnecessary stress on the door hinges. The flexible fin should make light, continuous contact with the threshold without buckling heavily under the weight of the door.

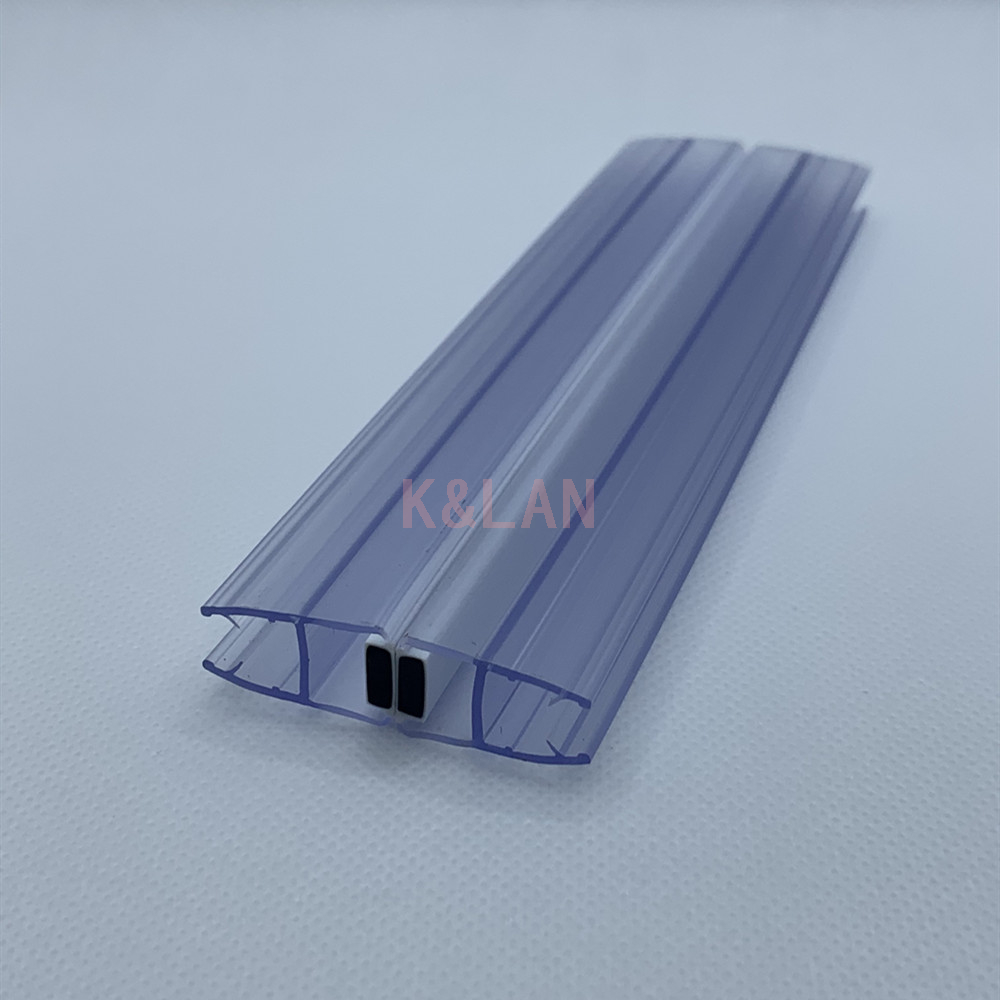

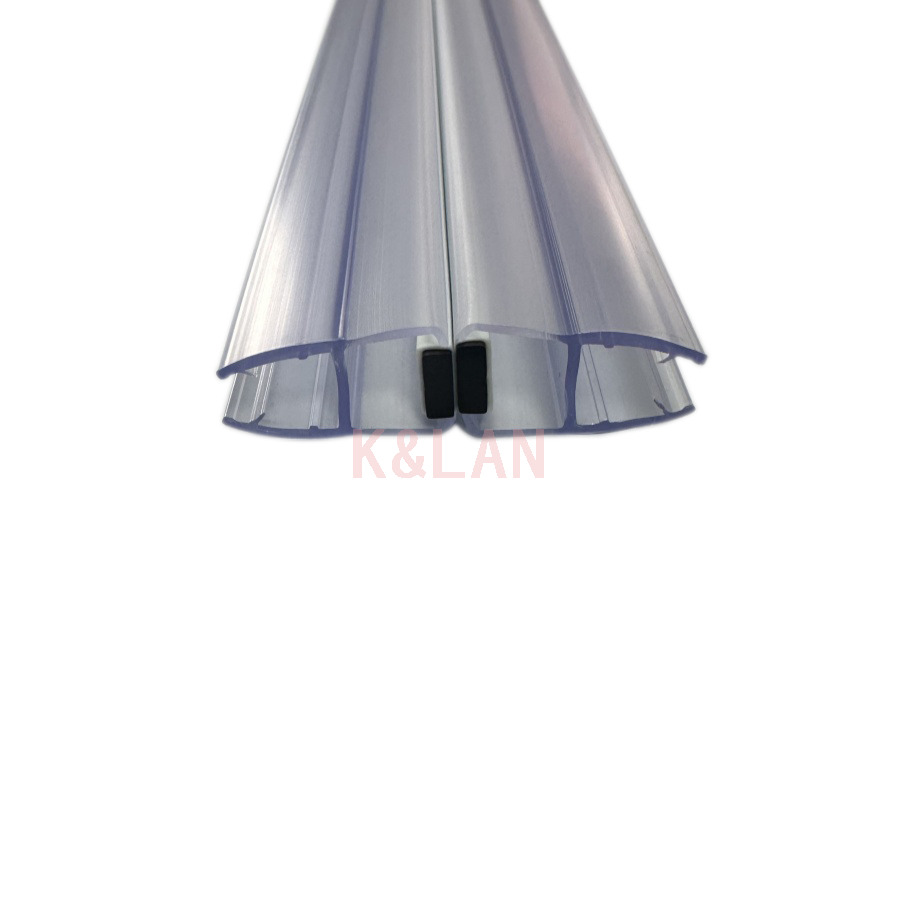

Maintaining watertight alignment between moving glass panels requires mechanical assistance. A magnetic shower seal utilizes embedded polarized strips within the extrusion to snap doors into perfect alignment. This proves highly effective for double doors and complex geometric enclosures meeting at 90-degree, 135-degree, or 180-degree glass-to-glass junctions.
Polarity strength serves as a critical specification metric. The magnetic attraction must hold the doors firmly closed against internal water pressure and accidental bumps, yet yield easily to standard manual pulling force. If the magnets lack sufficient strength, the doors drift open during use. If they pull too aggressively, users jerk the door open, causing violent vibrations through the tempered glass and stressing the hinge anchors.
Magnetic profiles compensate for minor structural imperfections. Walls rarely sit perfectly plumb, and glass panels often rest slightly out of square. The flexible housing around the magnetic strip allows for slight articulation. This bridges uneven gaps and ensures a continuous watertight closure even when the glass edges do not align perfectly parallel.
Vertical applications require distinct geometries to manage water without obstructing pivot hinges. Bulb seals feature a hollow, compressible cylinder that flattens against the adjacent wall or glass panel, creating a watertight barrier that absorbs impact. Fin seals utilize a single or double flexible lip to bridge narrow gaps behind hinges. Overlapping profiles mount on strike edges to allow a door to swing in only one direction, acting as a physical stop.
Fixed panels require specialized management. A shower screen seal focuses on static water deflection. Since the panel does not move, the extrusion provides a permanent, watertight seat within the U-channel or mounting clamps. These profiles manage thermal expansion. As the bathroom heats and cools, the glass expands and contracts minutely. The polymer extrusion acts as a shock absorber, preventing the rigid glass from grinding against metal hardware or tile.
Modern extrusions rely on co-extrusion technology, a manufacturing process that fuses two different polymer hardness levels into a single profile. The channel gripping the glass is extruded from a rigid polymer (typically measuring high on the Shore D hardness scale) to maintain structural memory and prevent slipping. The fins or bulbs are extruded from a soft, flexible polymer (measured on the Shore A scale) to manage friction and water deflection.
Substandard plastics degrade rapidly in high-moisture environments. Exposure to ambient UV light and harsh bathroom cleaning chemicals causes inferior polymers to oxidize. This chemical reaction makes the material yellow, harden, and become brittle. Once the flexible fins lose their elasticity, they snap off or fail to maintain contact with the threshold, rendering the profile useless.
Polycarbonate and virgin PVC serve as the industry standards for longevity. Polycarbonate offers superior impact resistance and absolute clarity, making it ideal for high-end architectural applications where the extrusion must remain virtually invisible. Virgin PVC provides excellent flexibility and chemical resistance at a more accessible price point. Premium architectural options incorporate advanced UV inhibitors and ultra-clear finishes, preventing the yellowing that plagues basic replacement parts.
Material Property | Virgin PVC (Co-extruded) | Polycarbonate |
|---|---|---|
Clarity & Aesthetics | Good clarity, may develop a slight cloudy tint over years of use. | Ultra-clear, glass-like transparency. Highly aesthetic. |
Flexibility | Excellent. Soft fins conform easily to uneven tile or stone grout lines. | Moderate. Rigid spine is very strong; flexible parts are slightly stiffer. |
Impact Resistance | Moderate. Can warp under heavy mechanical stress or improper cutting. | Exceptional. Highly resistant to cracking, deformation, or shattering. |
UV & Chemical Resistance | High, provided UV inhibitors are added during the extrusion process. | Superior resistance to yellowing and harsh cleaning agents. |
The microscopic surface porosity of the polymer directly impacts hygiene. Materials with high surface porosity trap soap scum, skin cells, and hard water minerals. This creates a breeding ground for mold and mildew. High-grade polycarbonate and treated PVC feature non-porous surfaces that resist microbial adhesion.
Cleaning protocols must align with the material limitations. Abrasive scrubbers or highly acidic cleaners score the surface of the polymer, increasing porosity and accelerating degradation. Maintenance requires non-abrasive, pH-neutral cleaners to dissolve mineral deposits without breaking down the flexible lip of the extrusion. Installers should advise clients to wipe down the extrusions with a squeegee or microfiber cloth after use to extend the lifespan of the polymer.
Procuring extrusions for large-scale residential developments, hospitality projects, or commercial gyms requires rigorous supplier vetting. A reliable glass door seal supplier must demonstrate strict quality control metrics. Extrusion precision remains paramount; a variance of even 0.2mm in the rigid channel renders an entire batch unusable on standard 10mm glass.
Batch-to-batch color consistency ensures that replacement parts ordered months apart match the original installations perfectly. Material certification guarantees that the polymers used are virgin materials rather than recycled plastics. Recycled plastics suffer from compromised structural memory, inconsistent melting points during extrusion, and significantly faster degradation rates in the field.
Standard profiles frequently fail to accommodate proprietary architectural hardware, unique glass curvatures, or non-standard gap dimensions found in custom builds. In these scenarios, developing an oem shower seal provides the only viable solution to ensure water containment.
The development process begins with CAD prototyping to map the exact geometry of the glass edge and the required deflection angles. Tooling costs are incurred to create the custom extrusion dies. Project managers must account for lead times associated with prototype testing, friction analysis, and final production runs. Minimum order quantities (MOQs) apply to custom runs, making this approach highly efficient for large developments but impractical for single-unit repairs.
Removing degraded, calcified extrusions requires precision to avoid scratching the glass or stripping factory-applied hydrophobic coatings. Hardened rigid channels fuse to the glass over time due to mineral buildup. Surface preparation dictates the success of the new installation. The glass edge must be entirely free of hard water stains, soap scum, and adhesive residue.
Pry the old extrusion away starting from the bottom corner using a non-marring plastic scraper. Never use metal putty knives or razor blades.
Apply a mild descaling solution to break the bond if the polymer has fused to the glass. Let it sit for five minutes.
Wipe the edge clean with a microfiber cloth.
Apply isopropyl alcohol to a clean rag and wipe the entire edge to remove any remaining soap film or residue.
Allow the glass to dry completely before attempting to install the new profile.
Standard extrusions ship in oversized lengths and require on-site cutting. Using improper tools, such as standard scissors or utility knives, crushes the rigid channel and creates micro-fractures in polycarbonate materials. Clean, square cuts require ratcheting PVC cutters, a miter shear, or a fine-tooth hacksaw.
Installers must leave standard expansion gaps during the cutting phase. Cutting the extrusion exactly flush with the top and bottom of the glass panel ignores thermal expansion and hinge articulation. Leaving a 1mm to 2mm gap at the hinge points prevents the polymer from binding against the metal hardware as the door pivots. For bottom sweeps, cut the rigid channel slightly shorter than the glass width, but leave the flexible fin extending to the edge to ensure full water coverage.
Forcing an undersized rigid channel onto thick frameless glass presents a severe safety hazard. The localized pressure causes edge chipping or initiates micro-fractures that lead to spontaneous shattering of the tempered panel. The extrusion should snap onto the glass with firm, even pressure, not excessive force.
To facilitate snap-on installations without binding, use non-reactive lubricants. Standard glass cleaner or warm soapy water allows the rigid channel to slide smoothly into place and evaporates completely. This leaves no slippery residue that could cause the extrusion to shift later. Never use oil-based lubricants, silicone sprays, or petroleum jelly, as they permanently compromise the grip of the rigid channel and degrade the polymer.
Measure your glass thickness and gap tolerances using digital calipers to determine the exact rigid channel width required.
Order co-extruded polycarbonate or virgin PVC profiles to ensure long-term resistance to UV yellowing and chemical degradation.
Select the specific profile geometry based on the mechanical action of the door, using sweeps for thresholds and magnetic closures for double doors.
Clean the glass edge thoroughly with isopropyl alcohol before pressing the new extrusion into place to prevent slipping.
Request physical extrusion samples from your supplier for commercial projects to conduct fitment and friction tests prior to bulk procurement.
A: Use digital calipers to measure the exact thickness of the glass edge. Tape measures lack the necessary precision. Common sizes are 6mm, 8mm, 10mm, and 12mm. Next, measure the gap between the glass edge and the adjacent wall or floor while the door rests in its fully closed position.
A: Pull the old extrusion away starting from the bottom corner. If it is calcified, use a non-marring plastic scraper. Clean the glass edge thoroughly with isopropyl alcohol or a mild descaler to remove hard water stains and soap scum. Never use metal tools, as they will scratch the glass.
A: A bottom seal refers to any profile on the lower edge of the glass, often featuring drip rails to deflect water back into the tray. A threshold sweep specifically utilizes flexible downward fins designed to drag lightly across the floor or curb, creating a physical barrier against escaping water.
A: A premium polycarbonate or virgin PVC extrusion lasts between two to five years under normal daily use. Lifespan depends heavily on maintenance routines, water hardness, and avoiding harsh, abrasive chemical cleaners that degrade the flexible polymers.
A: Yes, magnetic profiles work on single sliding doors to ensure a tight closure against the strike wall. One magnetic strip is housed in the extrusion on the leading edge of the sliding glass, while the opposing magnetic strip mounts directly to the wall or a fixed metal jamb.
A: Yes. Factory-applied hydrophobic coatings make the glass surface exceptionally slick. When installing a rigid channel on coated glass, you must ensure the extrusion has high tension memory to grip the slippery surface securely. This prevents the profile from sliding down the vertical edge over time.
